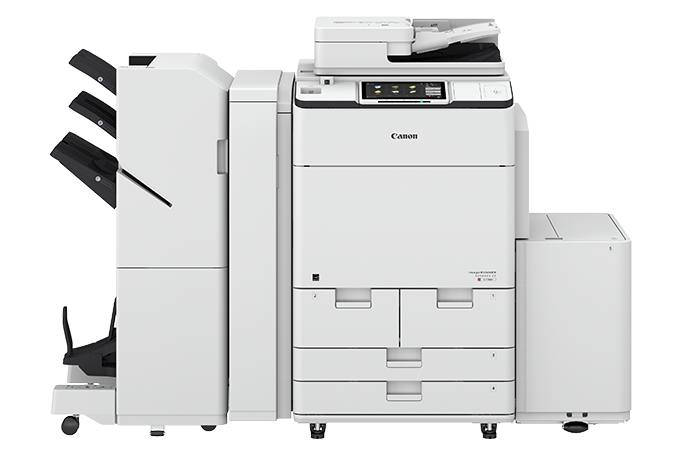

imageRUNNER ADVANCE DX C7765i

  • 10.1″ intuitive touchscreen with smartphone-like usability.
  • A unique, customized experience tailored to individual preferences using My ADVANCE.
  • Supports mobile solutions and integration with many popular cloud services like Google Drive.
  • Scan and convert documents to searchable digital files in a variety of file formats.
  • Integration with Canon and various third-party software with embedded application platform.
  • Hot Folders allow users to drag and drop a file into a hot folder, and automatically print with predefined settings such as number of copies and finishing requirements.

  • Advanced standard security feature set to help safeguard sensitive information and assist in regulatory compliance.
  • Integrates with existing, third-party Security Information and Event Management (SIEM) systems to help provide real-time comprehensive insights into potential threats to the network and printers.
  • Technology to verify that the device boot process, firmware, and applications initialize at startup, without any alterations or tampering by malicious third parties. During operation, McAfee Embedded Control utilizes a whitelist to protect against malware and tampering of firmware and applications.
  • Security policy settings can be controlled with a dedicated password, configured from a central location, and exported to other supported devices.
  • Control aCess to the device and specific features, using a host of flexible authentication methods – PIN code, username/password, or card aCess.

  • Canon’s signature reliability and engine technologies help keep productivity high and minimize the impact on support resources.
  • Outstanding imaging technologies and toner allow for consistently striking images, thanks to Canon’s V2 color profile.
  • Designed to achieve maximum uptime with status notifications that help keep supplies replenished and intuitive maintenance videos for consumables replacement.
  • imageRUNNER ADVANCE models have received many awards and recognition from leading industry analysts, often referencing strong reliability.

  • Designed for quick, easy deployment.
  • Remote diagnostics and parts life management for proactive maintenance and rapid fixes.
  • Easy and intuitive to monitor device status and consumable levels, turn off devices remotely, observe meter readings, manage settings, and implement security policies.
  • Common firmware and regular updates with Unified Firmware Platform (UFP) for continuous improvements and consistency across a fleet.

  • Track and assess print, copy, scan, and fax usage and allocate costs to departments or projects.
  • Apply print policies and restrict usage by user to help reduce unnecessary printing and contribute to cost efficiency.
  • Standard cloud-based solution provides a centralized dashboard with up-to-the-minute insights into printer activity.
  • Upgrade to uniFLOW server or cloud-based solutions for full aCounting and reporting for compatible Canon and third-party devices, pull printing, job routing, and powerful scan workflows.

  • A combination of fusing technologies and low-melting-point toner minimizes power requirements and helps achieve low energy consumption.
  • Encourage environmentally conscious work practices by enabling multiple settings that can help save paper and energy.
  • ENERGY STAR® certified and rated EPEAT® Gold.

imageRUNNER ADVANCE DX C7765i
MAIN UNIT

TYPE

Color Laser Multifunctional

CORE FUNCTIONS

Standard: Print, Copy, Scan, Send, Store
Optional: Fax

PROCESSOR

Canon Dual Custom Processor (Shared)

CONTROL PANEL

Standard: 10.1″ TFT LCD WSVGA Color Touch-panel
Optional: 10.4″ TFT LCD WSVGA Color Upright-panel

MEMORY

4.0 GB RAM

HARD DISK DRIVE

Standard: 250 GB/Maximum: 1 TB

PRINT RESOLUTION

2400 dpi x 2400 dpi

INTERFACE CONNECTION

Network
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy
Others
Standard: USB 2.0 (Host) x 1,USB 3.0 (Host)x 1, USB 2.0 (Device) x 1
Optional: Copy Control Interface
PAPER CAPACITY (LETTER, 20 LB. BOND)

Standard: 3,550 Sheets
Maximum: 9,300 Sheets

PAPER SOURCES (LETTER, 20 LB. BOND)

Standard: Two 1,100-sheet Paper Drawers, Two 550-sheet Paper Cassettes, 250-sheet Multi-purpose Tray
Optional: 3,660-sheet Paper Deck (Paper Deck Unit-E1), 3,660-sheet Paper Deck (POD Deck Lite-C1), 6,000-sheet Paper Deck (MultiDrawer Paper Deck-C1)
Maximum: 9,300 Sheets (With Multi-Drawer Paper Deck-C1)

PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)

250 Sheets (with Copy Tray-R2)
4,250 Sheets (with Staple Finisher-X1 or Booklet Finisher-X1)

FINISHING CAPABILITIES

With Finishers: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming

SUPPORTED MEDIA TYPES

Multi-purpose tray:
Thin, Plain, Recycled, Color, Heavy, Coated, Textured, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope
Paper Decks: Thin, Plain, Recycled, Color, Heavy, Tracing, Bond, Transparency, Bond, Pre-punched, Letterhead
Paper Cassettes: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Tab, Envelope1
SUPPORTED MEDIA SIZES

Multi-purpose Tray:
Standard size: 13″ x 19″, 12″ x 18″, 11″ x 17″, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size/Free Size: 4″ x 5-7/8″ to 13″ x 19-1/4″, Envelope: COM10 No.10, Monarch, DL, ISO-C5, Envelope Custom Size: 3-1-/2″ x 5-7/8″ to 13″ x 19-1/4″
Paper Decks: Letter
Paper Cassettes: 13″ x 19″, 12″ x 18″, 11″ x 17″, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size: 5-1/2″ x 7-1/8″ to 13″ x 19-1/4″, Envelope: COM10 No.10, Monarch, DL, ISO-C5, Envelope Custom Size : 3-7/8″ x 5-7/8″ to 13″ x 19-1/4″

SUPPORTED MEDIA WEIGHTS

Paper Drawers: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)
Paper Cassettes:14 lb. Bond to 140 lb. Index (52 to 256 g/m2)
Multi-purpose Tray: 14 lb. Bond to 110 lb. Cover (52 to 300 g/m2)
Duplexing: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)

PRINT/COPY SPEED (BW AND COLOR)

Up to 65/60 ppm (Letter); Up to 48/45 ppm (Letter-R); Up to 38/35 ppm (Legal); Up to 32/30 ppm (11″ x 17″)

WARM-UP TIME

From Power On: Approx. 30 Seconds2
Quick Startup Mode: Approx. 4 Seconds3
From Sleep Mode: 30 Seconds or Less4

DIMENSIONS (W x D x H)

27-1/8″ x 36-7/8″ x 46-5/8″ (689 mm x 937 mm x 1,185 mm)

INSTALLATION SPACE (W x D x H)

Basic: 79-3/4″ x 60″ (2,026 mm x 1,524 mm) (with front cover open + Multi-purpose tray/upper-right cover open + Buffer Pass+ Booklet Finisher-AC1/extension tray and rotary tray extended)
Fully Configured: 150-3/8″ x 60″ (3,818 mm x 1,524 mm) (with front door open + Multi-Drawer Paper Deck-C1 + Buffer Pass + Document Insertion Unit-N1 + Multi Function Professional Puncher-B1 + Paper Folding Unit-J1+ Booklet Finisher-X1)

WEIGHT

Approx. 562.2 lb. (255 kg)5
PRINT SPECIFICATIONS

DATA PROCESSING RESOLUTION (dpi)

2400 x 2400

STANDARD PAGE DESCRIPTION LANGUAGES

UFR II, PCL®6, Adobe® PS® 3

SUPPORTED FILES

PDF, TIFF, JPEG, EPS,6 XPS

PRINTING FROM MOBILE AND CLOUD-BASED SERVICES

A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.

FONTS

PCL Fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),7 Barcode Fonts8
PS Fonts: 136 Roman

OPERATING SYSTEM 9

UFR II/PS: Windows® 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019, Mac OS X(10.10 or later)
PCL: Windows 7/8.1/10/Server2008/Server2008 R2/Server2012/Server2012 R2/ Server2016/Server2019
PPD: Windows 7/8.1/10, Mac OS X(10.9 or later)
COPY SPECIFICATIONS

FIRST-COPY-OUT-TIME

As fast as 4.8 seconds (BW)/ 5.9 seconds (Color)

COPY RESOLUTION (dpi)

600 x 600

MULTIPLE COPIES

Up to 9,999

MAGNIFICATION

25%-400% (1% Increments)

PRESET REDUCTION / ENLARGEMENT

25%, 50%, 64%, 73%, 78%, 100%(1:1), 121%, 129%, 200%, 400%
SCAN SPECIFICATIONS

TYPE

Single-pass Duplexing Automatic Document Feeder

DOCUMENT FEEDER PAPER CAPACITY

200 Sheets (20 lb. Bond)

DOCUMENT FEEDER SUPPORTED MEDIA SIZES

11″ x 17″, Legal, Letter, Letter-R, Statement, Statement-R, Custom Size: 2-3/4″ x 5-1/2″ to 12″x17″

DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS

Single-sided/Double-sided Scanning: 13.3 lb. Bond to 80 lb. Cover (50 to 220 gsm)

PLATEN ACCEPTABLE ORIGINALS

Sheet, Book, 3-Dimensional Objects

PULL SCAN

Color Network ScanGear2 for both Twain and WIA
Supported OS: Windows/7/8.1/10 Server 2008/Server 2008 R2/Server 2012/ Server 2012 R2/Server 2016

SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES

A range of solutions is available to provide scanning to mobile devices and cloud-based services depending on your requirements.

SCAN SPEED (LETTER)

Single-sided Scanning BW/Color: 135/135 ipm (300 dpi), 80/80 ipm (600 dpi)
Double-sided Scanning BW/Color: 270/270 ipm (300 dpi), 160/90 ipm (600 dpi)
SEND SPECIFICATIONS

DESTINATION

Standard: E-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax

ADDRESS BOOK

LDAP (2,000)/Local (1,600)/Speed dial (200)

SEND RESOLUTION

Push: Up to 600 x 600
Pull: Up to 600 x 600

COMMUICATION PROTOCOL

File: FTP (TCP/IP), SMB v3.0, WebDAV
Email: SMTP, POP3

FILE FORMAT

Standard: TIFF, JPEG, PDF (Limited Color, Compact, Searchable, Apply Policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
FAX SPECIFICATIONS

MAXIMUM NUMBER OF LINES

4

MODEM SPEED

Super G3: 33.6 Kbps
G3: 14.4 Kbps

COMPRESSION METHOD

MH, MR, MMR, JBIG

RESOLUTION

400 x 400, 200 x 400, 200 x 200, 200 x 100

SENDING / RECORDING SIZE

Statement-R to 11″ x 17″

FAX MEMORY

Up to 30,000 Pages (2,000 Jobs)

SPEED DIALS

Max. 200

GROUP DIALS / DESTINATIONS

Max. 199 Dials

SEQUENTIAL BROADCAST

Max. 256 Addresses

MEMORY BACKUP

Yes
STORE SPECIFICATIONS

MAIL BOX SIMPLE (NUMBER SUPPORTED)

100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 10,000 Pages (2,000 Jobs) Stored

ADVANCED BOX

Communication Protocol: SMB or WebDAV
Supported Client PC: Windows (Windows 8.1/10)
Concurrent Connections (Max.)
SMB: 64
WebDAV: 3

ADVANCED BOX AVAILABLE DISC SPACE

Approx. 16 GB (Standard HDD)/Approx. 480 GB
SECURITY SPECIFICATIONS

AUTHENTICATION

Standard: Universal Login Manager, uniFLOW Online Express,10 User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in
Optional: uniFLOW

DATA

Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption (FIPS140-2 Validated), Verify System at Startup, McAfee Embedded Control
Optional: Hard Disk Drive Mirroring, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW)

NETWORK

Standard: Encrypted Secure Print,IP/Mac Address Filtering, IPsec, TLS Encrypted Communication (v1.0/1.1/1.2/1.3), SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration

DOCUMENT

Standard: Secure Watermark, Secure Print, Forced Hold Printing, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signature, User Signature
ENVIRONMENTAL SPECIFICATIONS

OPERATING ENVIRONMENT

Temperature: 50 to 86 ºF
Humidity: 20 to 80% RH (Relative Humidity)

POWER REQUIREMENTS

110-127 V AC, 60 Hz,16 A

POWER CONSUMPTION

Maximum: Approx. 2,000 W
Standby: Approx. 119.2 W11
Sleep Mode: Approx. 0.9 W12
Typical Electricity Consumption (TEC) Rating13 1.18 kWh

STANDARDS

ENERGY STAR® Certified
Rated EPEAT® Gold
CONSUMABLES

TONER

GPR-56 Toner

TONER YIELD (ESTIMATED @ 5% COVERAGE)

Black: 82,000 Images
Color (C,M,Y): 66,500 Images
FOOTNOTES

  1. Envelope Attachment-F1 required.

  2. Time from device power-on, until copy ready (not print reservation).

  3. Time from device power on to when the copy icon appears and is enabled to operate on the touch panel display.

  4. Time from exiting Sleep mode to when printing is operational.

  5. Includes main unit, ADF, and consumables.

  6. EPS can be printed directly only from the Remote User Interface.

  7. Requires the optional PCL International Font Set-A1.

  8. Requires the optional Barcode Printer Kit-D1.

  9. Other operating systems and environments including AS/400, UNIX, Linux and Citrix may be supported. Some of these solutions are chargeable. SAP Device Types are available via the SAP Market Place. For more information, contact your sales representative.

  10. No charge for this solution; however activation is required.

  11. Reference Value: measured one unit.

  12. 0.9 W Sleep mode is not available in all circumstances due to certain settings.

  13. Based on ENERGY STAR Product Specification for Imaging Equipment Version 3.0.
